Spring整合Redis之集群与故障转移

前言

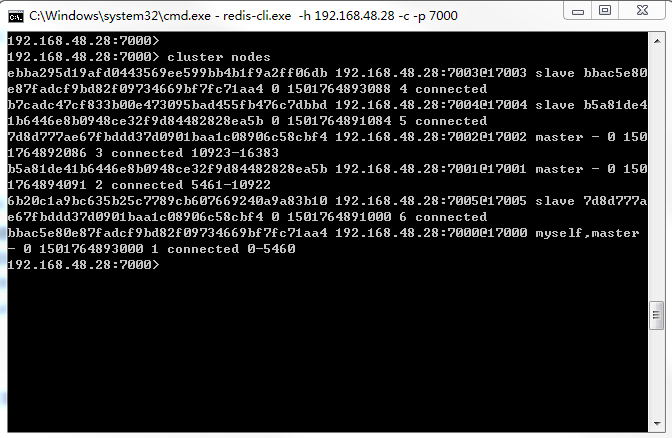

本文主要讲解spring整合redis集群，关于redis集群搭建网上相关文章挺多的，大家可以自己先搭建好，可以参考官网或中文版官网。本文假设你已经搭建好集群了，笔者redis(版本4.0.1)集群环境如下图：

7000、7001、7002三个主节点，7003、7004、7005三个从节点。Redis集群共有16384个哈希槽（hash slot）用于存放key，当前3个节点哈希槽分布为：

• 节点 7000 包含 0 到 5460号哈希槽
• 节点 7001 包含 5461 到 10922 号哈希槽
• 节点 7002 包含 10923 到 16383 号哈希槽

spring整合redis cluster

step1、maven依赖引入

<dependencies>
    <dependency>
        <groupId>org.springframework.data</groupId>
        <artifactId>spring-data-redis</artifactId>
        <version>1.8.6.RELEASE</version>
    </dependency>
    <dependency>
        <groupId>redis.clients</groupId>
        <artifactId>jedis</artifactId>
        <version>2.9.0</version>
    </dependency>
</dependencies>

step2、配置ConnectionFactory

建立集群连接需要获取RedisClusterConnection实例，该实例通过RedisConnectionFactory获取，可以如下配置

<bean id="jedisConnectionFactory" class="org.springframework.data.redis.connection.jedis.JedisConnectionFactory">
    <constructor-arg name="clusterConfig" ref="redisClusterConfiguration"/>
    <constructor-arg name="poolConfig" ref="jedisPoolConfig" />
</bean>

JedisConnectionFactory是RedisConnectionFactory的实现，构造函数需要两个参数，分别是集群配置clusterConfig和池配置poolConfig，下面一一来看

step3、配置JedisPoolConfig

<bean id="jedisPoolConfig"   class="redis.clients.jedis.JedisPoolConfig" >
    <property name="minIdle" value="${redis.minIdle}" />
    <property name="maxIdle" value="${redis.maxIdle}" />
    <property name="maxTotal" value="${redis.maxActive}" />
    <property name="maxWaitMillis" value="${redis.maxWait}" />
    <property name="testOnBorrow" value="${redis.testOnBorrow}" />
    <property name="testOnReturn" value="true" />
    <property name="testWhileIdle" value="true" />
</bean>

各个属性值从属性文件中读取，需要如下配置

<context:property-placeholder location="classpath:*.properties" ignore-unresolvable="true" />

属性文件spring-redis.properties内容

redis.minIdle=50
redis.maxIdle=200
redis.maxActive=100
redis.maxWait=3000
redis.testOnBorrow=true

step4、配置RedisClusterConfiguration

集群配置有两种方式

1.clusterNodes设值注入

<bean id="redisClusterConfiguration" class="org.springframework.data.redis.connection.RedisClusterConfiguration">
    <property name="clusterNodes">
      <set>
           <bean name="node1" class="org.springframework.data.redis.connection.RedisClusterNode">
               <constructor-arg name="host" value="192.168.48.28"/>
               <constructor-arg name="port" value="7000"/>
           </bean>
           <bean name="node2" class="org.springframework.data.redis.connection.RedisClusterNode">
               <constructor-arg name="host" value="192.168.48.28"/>
               <constructor-arg name="port" value="7001"/>
           </bean>
           <bean name="node3" class="org.springframework.data.redis.connection.RedisClusterNode">
               <constructor-arg name="host" value="192.168.48.28"/>
               <constructor-arg name="port" value="7002"/>
           </bean>
       </set>
    </property>
</bean>

2.propertySource构造注入

<bean id="redisClusterConfiguration" class="org.springframework.data.redis.connection.RedisClusterConfiguration">
    <constructor-arg name="propertySource" ref="propertySource"/>
</bean>

构造函数参数类型为org.springframework.core.env.PropertySource，我们使用它的实现类ResourcePropertySource

<bean name="propertySource" class="org.springframework.core.io.support.ResourcePropertySource">
    <constructor-arg name="location" value="classpath:spring-redis-cluster.properties" />
</bean>

spring-redis-cluster.properties内容：

#集群节点host:port,多个节点逗号分隔
spring.redis.cluster.nodes=192.168.48.28:7000,192.168.48.28:7001,192.168.48.28:7002
spring.redis.cluster.max-redirects=5

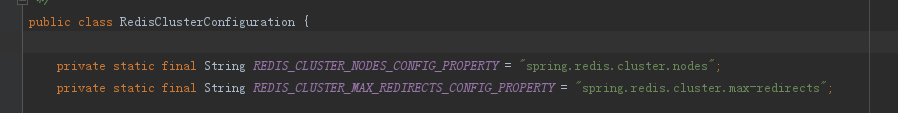

查看RedisClusterConfiguration源码可以看到这两个配置属性常量

个人比较喜欢第二种配置，更加简洁

step5、配置RedisTemplate

然后配置RedisTemplate，我们用StringRedisTemplate实现

<bean id="stringRedisTemplate" class="org.springframework.data.redis.core.StringRedisTemplate" p:connection-factory-ref="jedisConnectionFactory"/>

step6、测试

通过main方法测试一下

package example;

import org.springframework.context.support.ClassPathXmlApplicationContext;
import org.springframework.data.redis.core.StringRedisTemplate;
import org.springframework.data.redis.core.ValueOperations;

public class SpringMain {

    public static void main(String[] args) throws InterruptedException {
        ClassPathXmlApplicationContext context = new ClassPathXmlApplicationContext("classpath:spring-redis.xml");
        StringRedisTemplate template = context.getBean(StringRedisTemplate.class);
        ValueOperations<String, String> valueOperations = template.opsForValue();
        valueOperations.set("key1","value1");
        valueOperations.set("key2","value2");
        valueOperations.set("key3","value3");
        valueOperations.set("key4","value4");
        valueOperations.set("key5","value5");
        valueOperations.set("key6","value6");
        System.exit(0);
    }
}

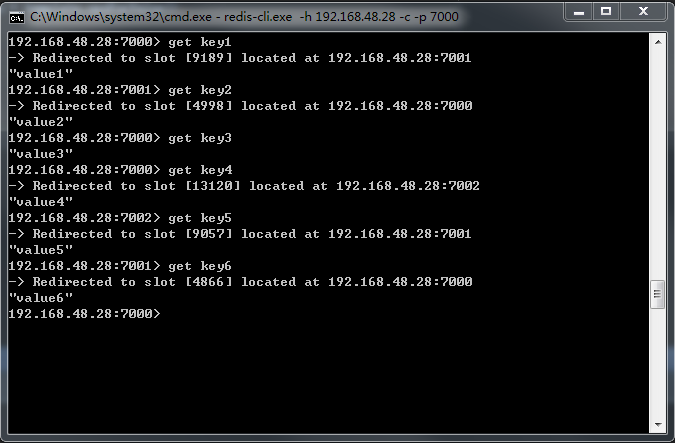

通过命令行连接redis服务器查看结果：

每个key通过CRC16（详情参考官网）校验后对16384取模放到对应哈希槽（hash slot）中。redis-cli客户端工具会根据哈希槽（hash slot）所在节点进行跳转，所以会看到“-> Redirected to slot…”的提示。
最后贴下完整配置：

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:p="http://www.springframework.org/schema/p" xmlns:redis="http://www.springframework.org/schema/redis"
       xmlns:context="http://www.springframework.org/schema/context"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/redis http://www.springframework.org/schema/redis/spring-redis.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd">

    <context:property-placeholder location="classpath:*.properties" ignore-unresolvable="true" />

    <!-- Jedis ConnectionFactory -->
    <bean id="jedisConnectionFactory" class="org.springframework.data.redis.connection.jedis.JedisConnectionFactory">
        <constructor-arg name="clusterConfig" ref="redisClusterConfiguration"/>
        <constructor-arg name="poolConfig" ref="jedisPoolConfig" />
    </bean>

    <!-- RedisClusterConfiguration -->
    <bean id="redisClusterConfiguration" class="org.springframework.data.redis.connection.RedisClusterConfiguration">
        <constructor-arg name="propertySource" ref="propertySource"/>
      <!--  <property name="clusterNodes">
           <set>
               <bean name="node1" class="org.springframework.data.redis.connection.RedisClusterNode">
                   <constructor-arg name="host" value="192.168.48.28"/>
                   <constructor-arg name="port" value="7000"/>
               </bean>
               <bean name="node2" class="org.springframework.data.redis.connection.RedisClusterNode">
                   <constructor-arg name="host" value="192.168.48.28"/>
                   <constructor-arg name="port" value="7001"/>
               </bean>
               <bean name="node3" class="org.springframework.data.redis.connection.RedisClusterNode">
                   <constructor-arg name="host" value="192.168.48.28"/>
                   <constructor-arg name="port" value="7002"/>
               </bean>
           </set>
        </property>-->
    </bean>

    <bean name="propertySource" class="org.springframework.core.io.support.ResourcePropertySource">
        <constructor-arg name="location" value="classpath:spring-redis-cluster.properties" />
    </bean>

    <!-- JedisPoolConfig definition -->
    <bean id="jedisPoolConfig"   class="redis.clients.jedis.JedisPoolConfig" >
        <property name="minIdle" value="${redis.minIdle}" />
        <property name="maxIdle" value="${redis.maxIdle}" />
        <property name="maxTotal" value="${redis.maxActive}" />
        <property name="maxWaitMillis" value="${redis.maxWait}" />
        <property name="testOnBorrow" value="${redis.testOnBorrow}" />
        <property name="testOnReturn" value="true" />
        <property name="testWhileIdle" value="true" />
    </bean>

    <!-- redis template definition -->
    <bean id="stringRedisTemplate" class="org.springframework.data.redis.core.StringRedisTemplate" p:connection-factory-ref="jedisConnectionFactory"/>

</beans>

redis集群进阶

故障转移

现在我们来测试下故障转移，通过向端口号为7002的主节点发送DEBUG SEGFAULT命令， 让这个主节点崩溃：

$ redis-cli -p 7002 debug segfault

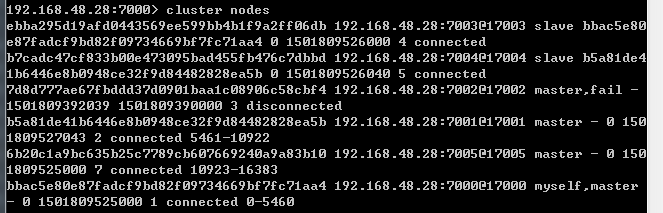

查看现在集群节点状态：

可以看到7002状态为fail,他的从节点7005被选举为新的主节点
根据前面的测试我们知道键key4被“hash”到了13120哈希槽，位于7002节点，现在7002挂了，他会放到哪呢？

ValueOperations<String, String> valueOperations = template.opsForValue();
valueOperations.set("key4","bar4");

可以看见，13120哈希槽已经转移到新的主节点7005上了

主从复制模型

如果上步新的主节点7005也挂了会出现什么情况呢？我们让这个节点崩溃：

$ redis-cli -p 7005 debug segfault

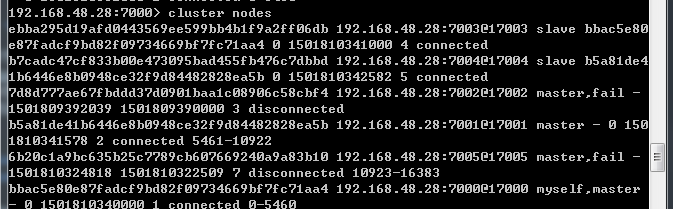

查看现在集群节点状态：

可以看到7005的状态也为fail，现在通过spring redis发送命令，会报连接异常

Exception in thread "main" org.springframework.data.redis.RedisConnectionFailureException: Could not get a resource from the pool; nested exception is redis.clients.jedis.exceptions.JedisConnectionException: Could not get a resource from the pool
	at org.springframework.data.redis.connection.jedis.JedisExceptionConverter.convert(JedisExceptionConverter.java:67)
	at org.springframework.data.redis.connection.jedis.JedisExceptionConverter.convert(JedisExceptionConverter.java:41)
	at org.springframework.data.redis.PassThroughExceptionTranslationStrategy.translate(PassThroughExceptionTranslationStrategy.java:37)
	at org.springframework.data.redis.connection.jedis.JedisClusterConnection.convertJedisAccessException(JedisClusterConnection.java:3999)
	at org.springframework.data.redis.connection.jedis.JedisClusterConnection.set(JedisClusterConnection.java:642)
	at org.springframework.data.redis.connection.DefaultStringRedisConnection.set(DefaultStringRedisConnection.java:744)
	at org.springframework.data.redis.core.DefaultValueOperations$10.inRedis(DefaultValueOperations.java:172)
	at org.springframework.data.redis.core.AbstractOperations$ValueDeserializingRedisCallback.doInRedis(AbstractOperations.java:57)
	at org.springframework.data.redis.core.RedisTemplate.execute(RedisTemplate.java:207)
	at org.springframework.data.redis.core.RedisTemplate.execute(RedisTemplate.java:169)
	at org.springframework.data.redis.core.AbstractOperations.execute(AbstractOperations.java:91)
	at org.springframework.data.redis.core.DefaultValueOperations.set(DefaultValueOperations.java:169)
	at example.SpringMain.main(SpringMain.java:26)

再看看通过命令行向集群发送命令：

发现整个集群已经宕掉了，根据redis主从复制模型，当某个主节点和他的所有从节点都挂掉，集群会因为缺少某一范围的哈希槽而不用，如上集群7002主节点7005从节点都挂了，集群因缺少10923-16383范围哈希槽而变的不可用。

参考

spring-data-redis cluster:https://docs.spring.io/spring-data/redis/docs/2.0.0.RC2/reference/html/#cluster

中文官网Redis集群教程:http://www.redis.cn/topics/cluster-tutorial.html
